Model

KB16KM02

Product Name

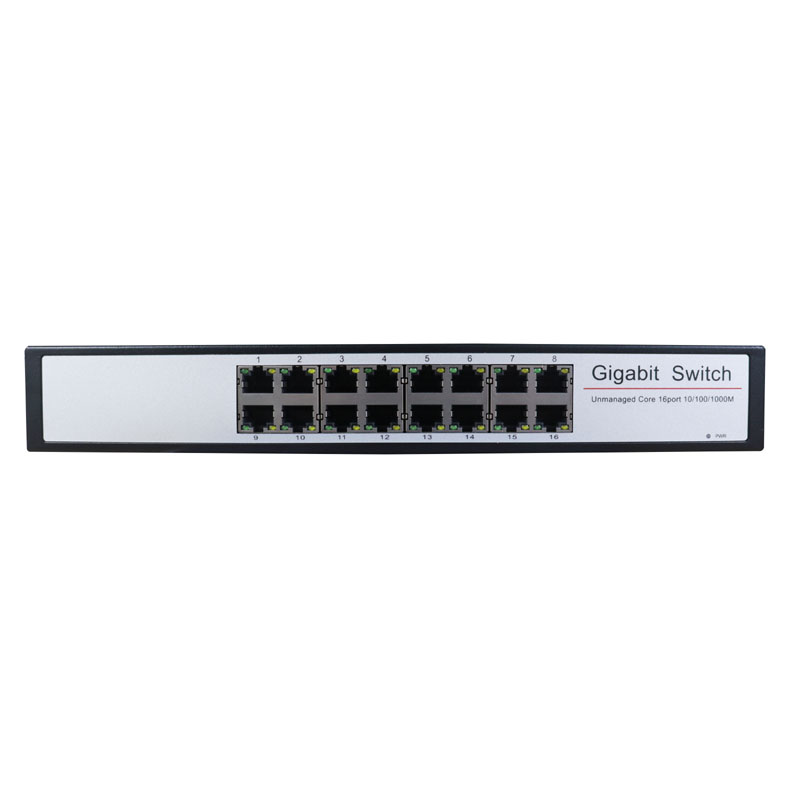

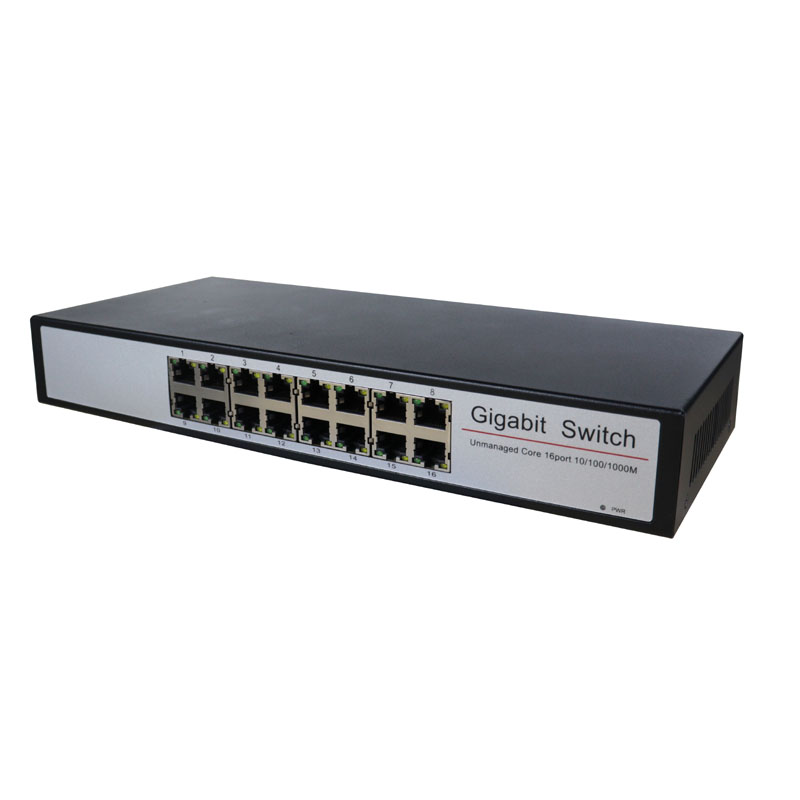

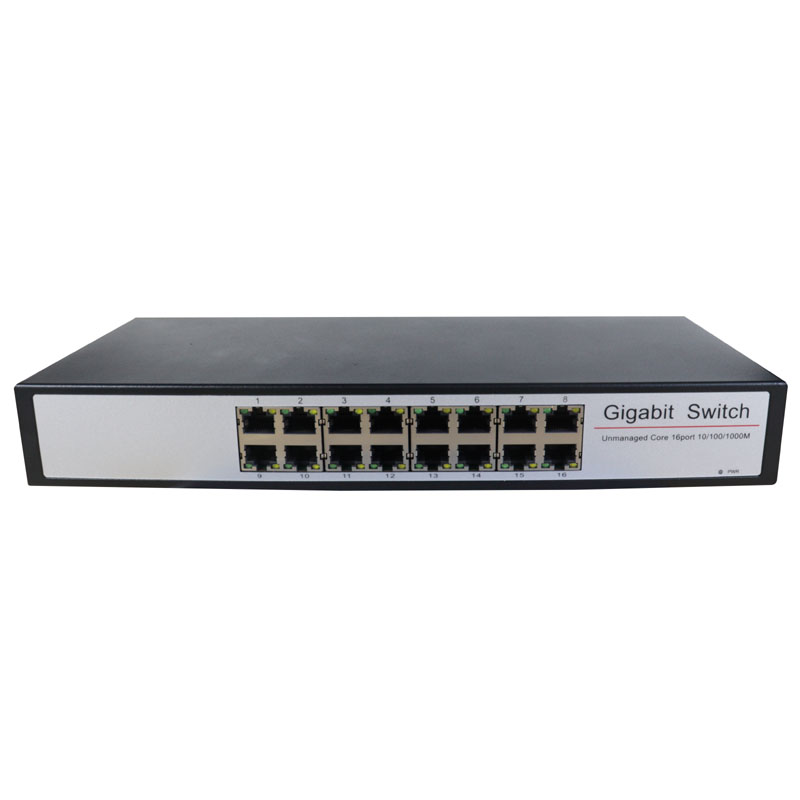

rack-mounted 16-port gigabit switch

Fixed port

16*10/100/1000Base-TX RJ45 (Data)

Network protocol

IEEE 802.3
IEEE 802.3i 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T

IEEE 802.3x
IEEE 802.1q VLAN

Network port characteristics

10/100/1000BaseT（X）Automatic detection, full/half duplex MDI/MDI-X adaptive

Forwarding mode

Store and forward (full line speed)

Backplane bandwidth

56Gbps （ non-blocking ）

Packet forwarding rate

40.32Mpps

Support  9K  jumbo frame transmission

MAC address table

8K

Packet forwarding cache

4.1M

Twisted pair transmission

10BASE-T ： Cat3,4,5 UTP(≤250 meter)

100BASE-TX ： Cat5 or later UTP(150 meter)

1000BASE-TX ： Cat6 or later UTP(150 meter)

Power Consumption

standby power ≤15W；

LED indicator lamp

PWR: Power indicator light (power overload indicator light)

1-16: Network indicator light  Green:100M,Yelow:1000M

Power supply

Built in switch power supply AC：100～240V 50-60Hz 1A

Working temperature/humidity

-10～+55°C；5%～90% RH No condensation

Storage temperature/humidity

-40～+75°C；5%～95% RH  No condensation

Product /packaging size（L*W*H）

310mm*135mm*45mm

Net /Gross weight（kg）

1.6kg/2.1kg

Installation method

Desktop

protection grade

IP30

Safety certification

CE mark, commercial；CE/LVD EN60950；
FCC Part 15 Class B；RoHS；

Warranty period

Complete machine for 3 years (excluding accessories)
