Model

KB16KM01

Product Name

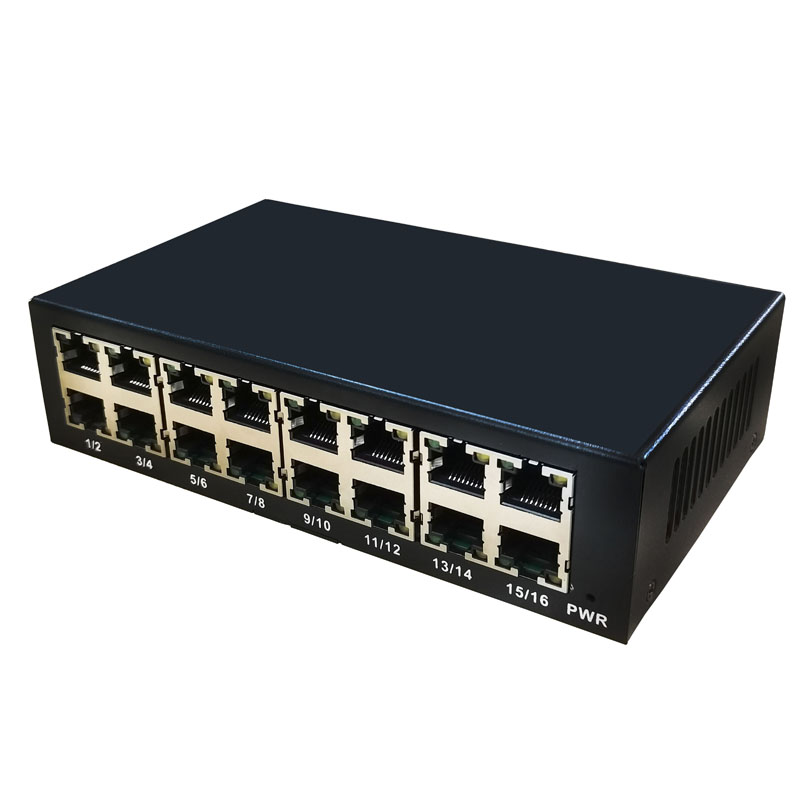

16-port gigabit switch

Fixed port

16*10/100/1000Base-TX RJ45 (Data)

Network protocol

IEEE 802.3
IEEE 802.3i 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T

IEEE 802.3x
IEEE 802.1q VLAN

Network port characteristics

10/100/1000BaseT（X）Automatic detection, full/half duplex MDI/MDI-X adaptive

Forwarding mode

Store and forward (full line speed)

Backplane bandwidth

56bps （non-blocking）

Packet forwarding rate

14.44Mpps

Support  9K  jumbo frame transmission

MAC address table

4K

Packet forwarding cache

2.5M

Twisted pair transmission

10BASE-T ： Cat3,4,5 UTP(≤250 meter)

100BASE-TX ： Cat5 or later UTP(150 meter)

1000BASE-TX ： Cat6 or later UTP(150 meter)

Power Consumption

standby power ≤15W；

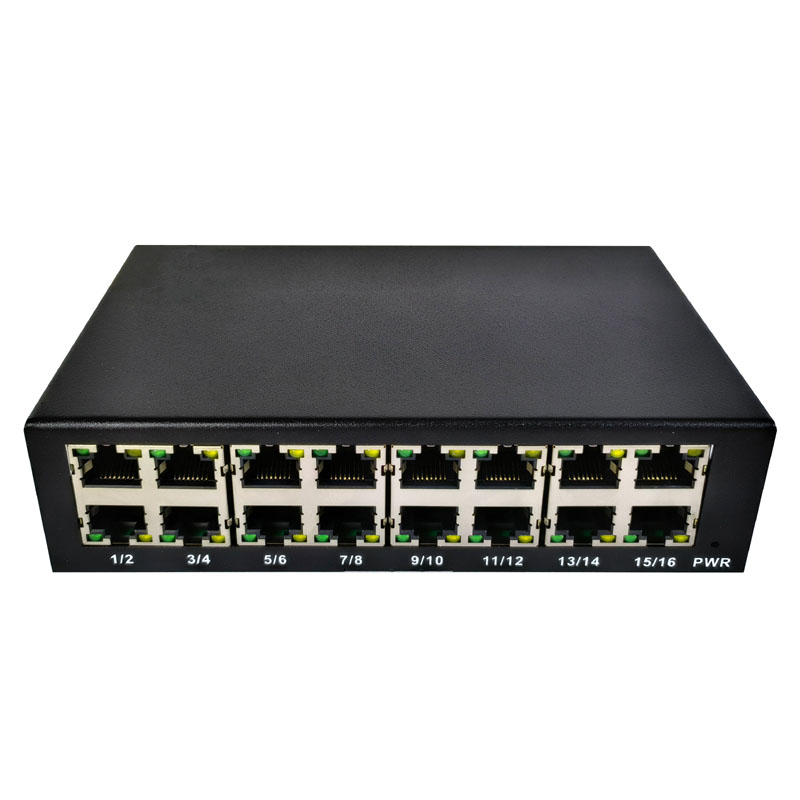

LED indicator lamp

PWR: Power indicator light (power overload indicator light)

1-16： Network indicator light  Green:100M,Yelow:1000M；

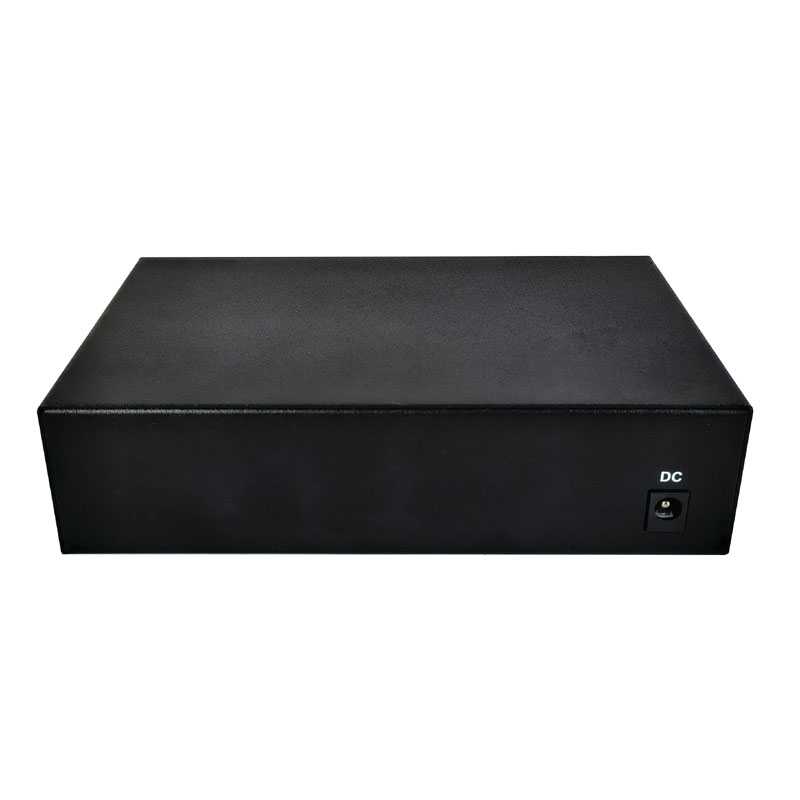

Power supply

DC 5-12V

Working temperature/humidity

-10～+55°C；5%～90% RH  No condensation

Storage temperature/humidity

-40～+75°C；5%～95% RH  No condensation

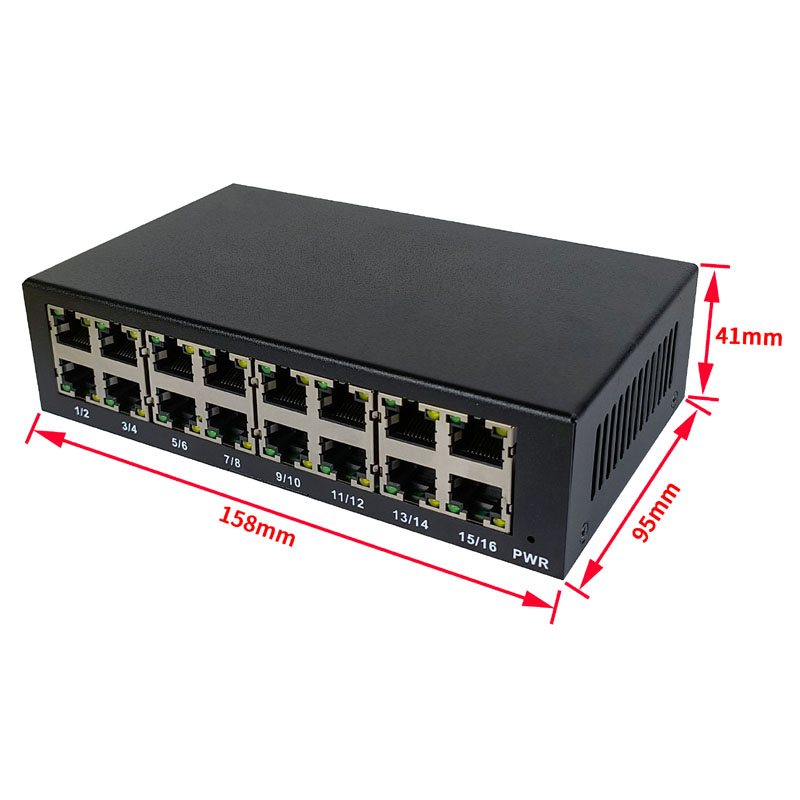

Product /packaging size（L*W*H）

160mm*125mm*41mm

Net /Gross weight（kg）

0.8kg

Installation method

Desktop style

Safety certification

CE mark, commercial; CE/LVD EN60950;
FCC Part 15 Class B;RoHS;

Warranty period

Complete machine for 3 years (excluding accessories)
