Model

KB08KP01

Product Name

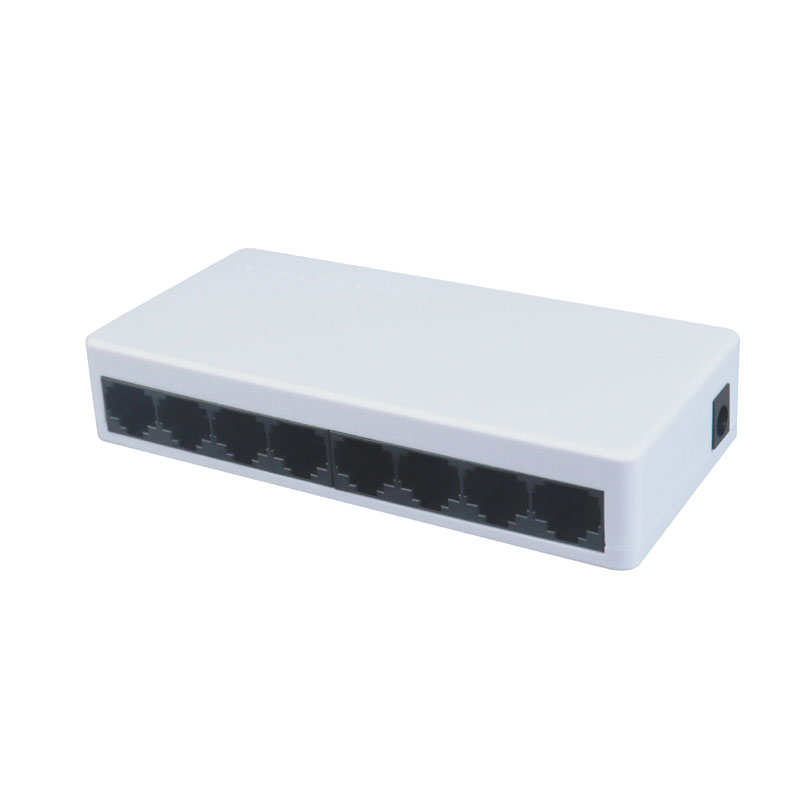

8-port gigabit switch

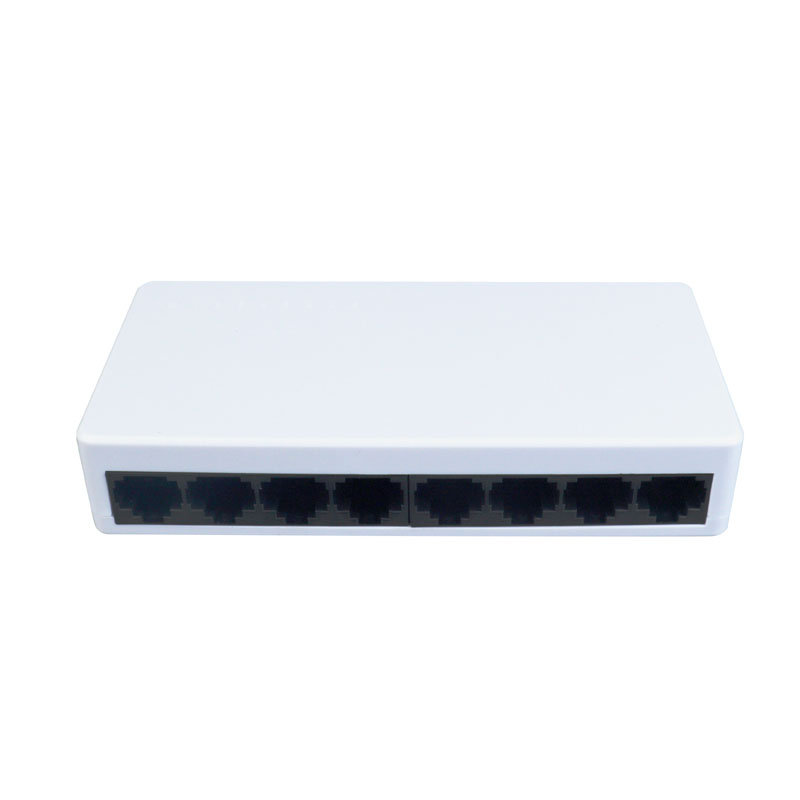

Fixed port

8*10/100/1000Base-TX RJ45 (Data)

Network protocol

IEEE 802.3
IEEE 802.3i 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T

IEEE 802.3x

Network port characteristics

10/100/1000BaseT（X） Automatic detection, full/half duplex MDI/MDI-X adaptive

Forwarding mode

Store and forward (full line speed)

Backplane bandwidth

16Gbps （ non-blocking ）

Packet forwarding rate

11.52Mpps

Support  9K  jumbo frame transmission

MAC address table

2K

Packet forwarding cache

2.5M

Twisted pair transmission

10BASE-T : Cat3,4,5 UTP(≤250 meter)

100BASE-TX : Cat5 or later UTP(150 meter)

1000BASE-TX : Cat6 or later UTP(150 meter)

Power Consumption

standby power :≤6W;

LED indicator lamp

Power: Power indicator light (power overload indicator light)

1-8:Network indicator light

Power supply

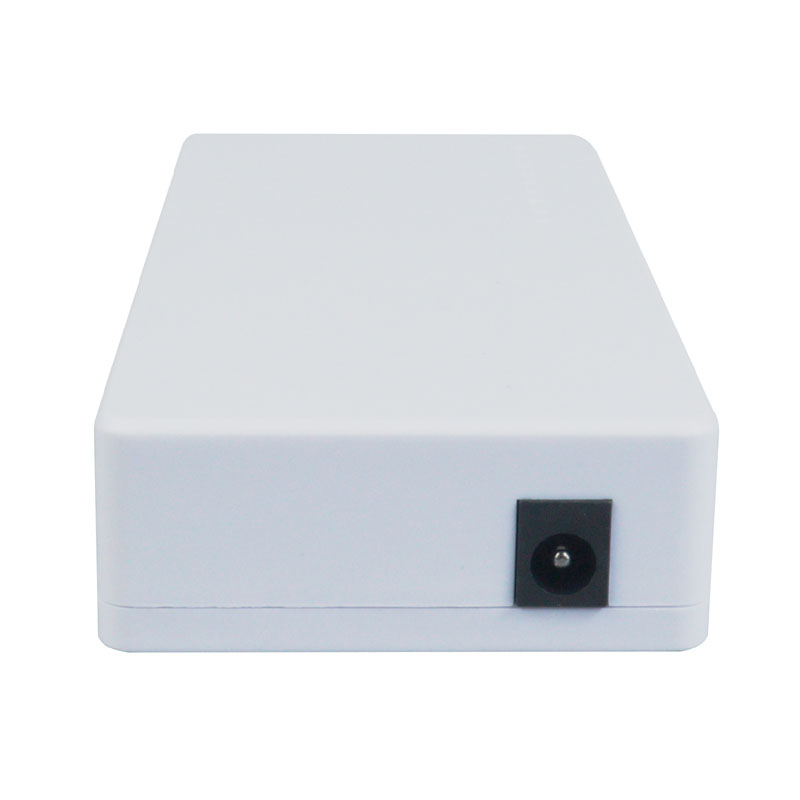

External switch power supply:5-12V

Working temperature/humidity

-10～+55°C;5%～90% RH  No condensation

Storage temperature/humidity

-40～+75°C;5%～95% RH  No condensation

Product /packaging size（L*W*H）

127mm*60mm*27mm

132mm*75mm*62mm

Net /Gross weight （kg）

70g/150g

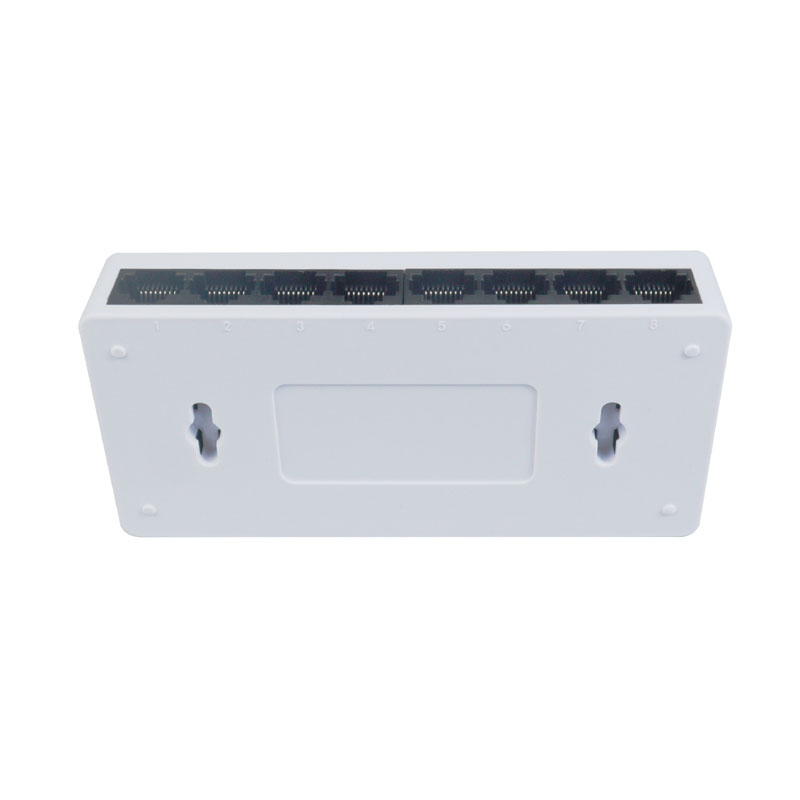

Installation method

Desktop style

Safety certification

CE mark, commercial; CE/LVD EN60950;
FCC Part 15 Class B;RoHS;

Warranty period

Complete machine for 3 years (excluding accessories)
